A quick and easy DIY (Do-It-Yourself) kit
The upgrade kits are designed so the customer can do the installation themselves, without the use of tech services or any additional tools - even the screw driver is included.
Do you use SimPad Classic or PC SkillReporter?
The SimPad classic (yellow button) will not work with your manikin after upgrading. The electronics in the kits currently work with PC Skillreporter software on wired connection only (up to 6 manikins using a USB hub). A new PC Skillreporter software patch is under development. The PC Skillreporter patch will be available for free download to existing PC Skillreporter customers from the Laerdal software download site without the need for a license key. Be aware that any BTLE connection to a computer requires Windows 10 and above.
What's included?

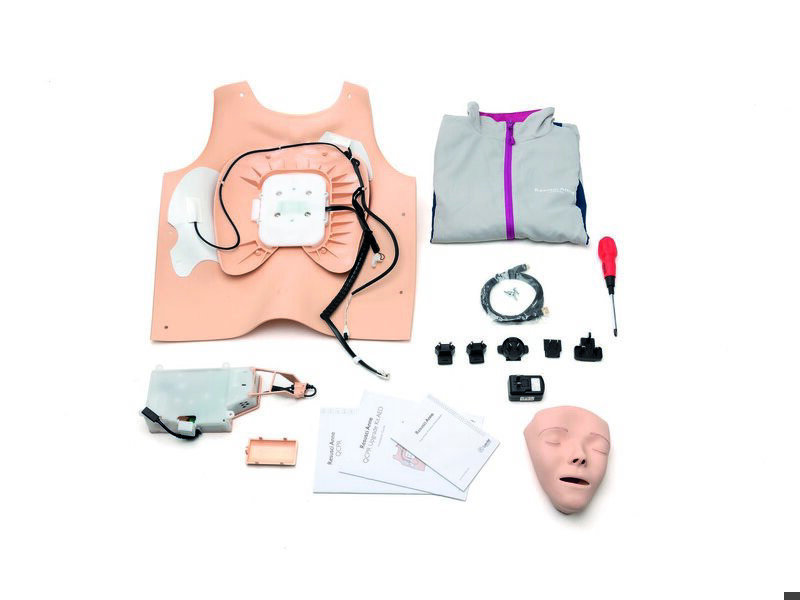

The RA QCPR upgrade kit include the new electronics including BTLE and rechargeable battery in addition to required cables, a new chest skin and clothes.
- Electricals with Li-Ion battery
- Chest Assembly QCPR with AED electrodes
- Resusci Anne Jacket
- Face skin
- Airway Resusci Anne
- Cable - USB-A to USB-C (Cable for AC power adapter)
- AC Power Adapter (with various connectors)
- Armband – BT Smart QCPR (to place in arm of manikin)
- Label – BT Smart QCPR (to stick on manikin)
- Screwdriver
- IPI, User Guide Resusci Anne, Installation Guide
What can be updated
All Resusci Anne QCPR and Resusci Anne First Aid manikins manufactured since 2013 can be upgraded. Older Resusci Anne manikins do not have a design that fit with the upgrade kits.
|
170-00150 RA First Aid Torso in Carry Bag |
yes * |
|
170-01250 RA First Aid Full Body in Trolley Case |
yes * |
|
171-00150 RA QCPR Torso in Carry Bag |
yes |
|
171-01250 RA QCPR Full Body in Trolley Case |
yes |
|
172-00150 RA QCPR AW Torso in Carry Bag |
yes |
|
172-01250 RA QCPR AW Full Body in Trolley Case |
yes |
|
173-00150 RA QCPR AED Torso in Carry Bag |
yes |
|
173-01250 RA QCPR AED Full Body in Trolley Case |
yes |
|
174-00150 RA QCPR AED AW Torso in Carry Bag |
yes |
|
174-01250 RA QCPR AED AW Full Body in Trolley Case |
yes |
|
175-00150 RA QCPR D Torso in Carry Bag |
yes ** |
|
175-01250 RA QCPR D Full Body in Trolley Case |
yes ** |
|
176-00150 RA QCPR D AW Torso in Carry Bag |
yes ** |
|
176-01250 RA QCPR D AW Full Body in Trolley Case |
yes ** |
*) For Resusci Anne First Aid it is required to install the 171-20050 RA QCPR Periodic Maintenance kit when upgrading. The lung plate in the kit contains sensors essential to QCPR measurements. These customers must choose the bundled options, 171-15010 or 173-15010.
**) Resusci Anne QCPR-D/QCPR-D AW can be upgraded/converted to AED-Link version for use with ShockLink. The possibility to use live AED or defibrillator with paddles or training cables will be invalid if upgraded. There is no option to upgrade the electronics in RA QCPR-D/RA QCPR-D AW without converting the RA manikin to AED link for ShockLink.
How to identify an upgradable manikin
Resusci Anne FA/QCPR manikins released after 2013 have the jack socket hole for the SkillGuide in the shoulder - earlier versions of the manikins do not have this hole. The hole can be plugged or not. Resusci Anne Advanced SkillTrainer and Resusci Anne Simulator also have this hole, but they can be separated from the Resusci Anne QCPR/FA by having the Lithium-Ion battery inside. It is also possible to identify the manikins by looking at the article number in the identifier tag under the skin.
