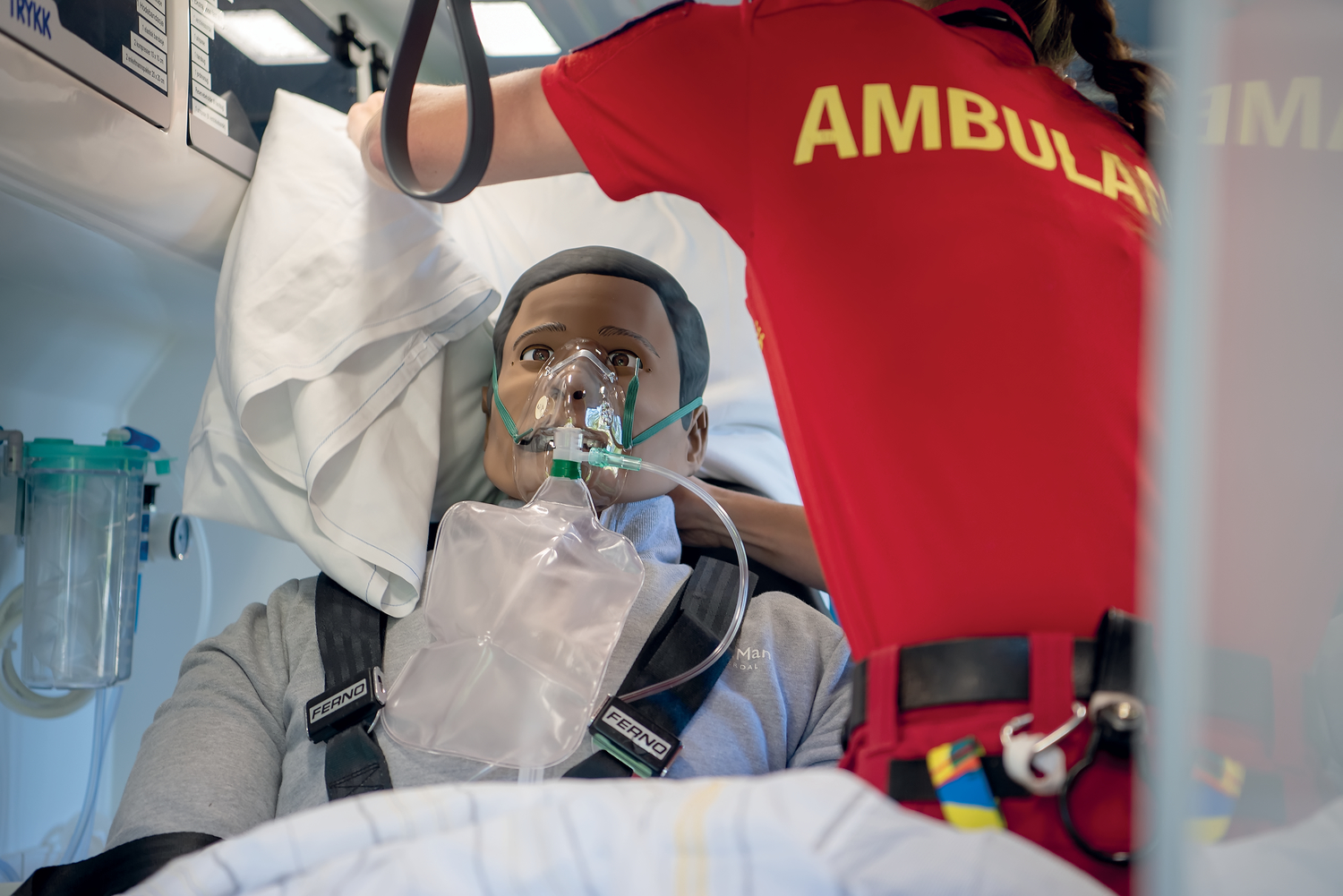

Adding realism to in-situ training
SimMan ALS provides a mobile, durable and affordable solution that will meet the training needs of pre-hospital and in-hospital emergency care providers - from basic assessment to advanced life-support skills.
From pre-hospital, on-scene assessment and management to definitive care in a hospital, SimMan ALS can fulfill the unique training requirements of emergency healthcare providers.
Designed to strengthen skills in:
- Airway management
- Breathing assessment
- Vascular access
- Anterior/posterior sounds
- Palpation and auscultation
- Cyanosis linked to vital signs
- Fluid resuscitation
- ECG interpretation
- Ultrasound assessment and diagnosis
SimMan ALS can be used for the complete training of the American Heart Association (AHA) and European Resuscitation Council (ERC) Advanced Cardiac Life Support (ACLS) Course as well as a wide range of skills from basic assessment to critical care.
Enhanced defibrillation training with ShockLink or LiveShock
SimMan ALS LiveShock
SimMan ALS LiveShock is a combination of a unique SimMan ALS chest skin and an integrated ShockLink unit that enables the use of a live defibrillator with real pads or paddles. No need for separate training pads or paddles.
SimMan ALS with ShockLink
Pairing SimMan ALS with ShockLink (bought separately) enables the use of a live defibrillator with training pads. Training events will automatically be captured in the SimPad PLUS or LLEAP data log for assessment and debrief.
For both options, training events such as time spent administering CPR, to placing the pads correctly and delivering a shock with minimal interruptions will automatically be captured in the SimPad PLUS or LLEAP data log for assessment and debrief.
Operation and Debriefing Options
Whether using SimPad PLUS or a LLEAP PC to run your simulation, the software is easy and efficient to use for scenario based training. The intuitive operating platforms provide flexible management of patient parameters, integrated data and video capture, as well as simulated patient monitoring capabilities. Choose the operating systems that works best for your training needs.
SimPad PLUS
LLEAP Instructor PC
Take Your Simulation Training Further
SimMan Trauma can be used as one component of a more comprehensive solution to further enhance your clinical skills training.
ASL 5000 Lung Solution
Conduct training with a spontaneously breathing patient supported on a ventilator.
Learning Management Solution
Learning management solution with integrated debriefing and assessment tools.
VitalsBridge Patient Monitoring
Use your own clinical patient monitor during simulation training for increased realism.
SonoSim Ultrasound
Real ultrasound cases with pathological findings into full-scale simulations.
Laerdal Scenario Cloud
Conduct training with a spontaneously breathing patient supported on a ventilator.
Specifications
 |
 |
 |
|
Anterior and posterior lung sounds |
CPR measurement capture and review |
Cyanosis linked to vital signs |
|
|
|
|
|
Pneumothorax with unilateral chest movement |
Prepared for ultrasound diagnostic and enhanced defibrillation training |
Vascular access - IV and IO |
Completely wireless and self-contained
- Internal electrical and pneumatic power
- Supplemental wired connectivity and power
- Wirelessly integrates with existing computer networks
- Possibility to attach an additional battery on the side to extend the use
- Rugged and reliable for use in multiple environments
Multiple Airway Skills/Features:
- Controllable open/closed airway; automatically or manually controlled
- Head tilt/Chin lift
- Jaw thrust w/articulated jaw
- Suctioning (Oral & Nasopharyngeal)
- Bag-mask ventilation
- Orotracheal intubation
- Nasotracheal intubation
- Combitube, LMA, I-gel and other airway placement
- Endotracheal tube intubation
- Retrograde intubation
- Fiberoptic intubation
- Transtracheal jet ventilation
- Needle cricothyrotomy
- Surgical cricothyrotomy
- Airway resistance - 3 settings (On/Off/Half)
- Right main stem intubation
- Stomach distention
Airway Complications:
- Tongue fallback
- Tongue edema
Breathing Features:
- Simulated spontaneous breathing
- Bilateral and unilateral chest rise and fall
- Normal and abnormal breath sounds
- Lung auscultation sites: posterior and anterior sites
- Oxygen saturation and waveform
Breathing Complications:
- Cyanosis
- Needle thoracentesis – bi-lateral
- Unilateral & Bilateral chest movement
- Chest tube insertion – bilateral
Cardiac Features:
- Extensive ECG library
- Heart sounds
- ECG rhythm monitoring (4 wire)
- 12 lead ECG display
- Defibrillation and cardioversion with live shock – Laerdal LINK technology
- Pacing
Circulation Features:
- BP measured manually by auscultation of Korotkoff sounds
- Carotid, femoral, radial pulses synchronized with ECG
- Pulse strength variable with BP
- Pulse Palpation is detected & logged
Vascular Access:
- IV access (right arm)
- Intraosseous access (tibia)
CPR:
- Compliant with 2010-2015 Guidelines
- CPR compressions generate palpable pulses, blood pressure wave form, and ECG artefacts
- Realistic compression depth and resistance
- Detection of depth, release and frequency of compressions
Eyes:
- Manually set to: Open, closed and partially open
- Set of interchangeable pupils
Other Features:
- Foley catheterization without urine output
- Pre-prepared for use of the SonoSim Ultrasound solution
- Patient Voice
- Pre-recorded sounds
- Custom sounds
- Instructor can simulate patient’s voice wirelessly
System Features:
- Wireless tablet PC controls simulator remotely or SimPad Plus system
- Control simulations from anywhere on your network
- Manual Mode
- Precise control “on the fly”
- Automatic Mode
- Run pre-packaged scenarios
- Unique, simple controls increase/decrease difficulty & pace
- Integrated video debriefing
- Data logging
- Instructor comments
- Scenarios available on Laerdal Scenario Cloud
Patient Monitor:
- Wireless
- Highly configurable
- Includes (depending on the operating system):
- ECG (2 traces)
- SpO2
- CO2
- ABP
- CVP
- ICP
- Anesthetic Agent
- PH
- PTC
- PAP
- PCWP
- NIBP
- TOF
- Cardiac Output>
- Temperature (core & peripheral)
- Additional and programmable
Parameters:
- 12 Lead ECG Display
LLEAP
- X-Ray Display
- Custom Image Display
- Custom Video Display
SimMan ALS includes:
- SimMan ALS Manikin
- 2 Soft Sided Transportation Cases
- Specially Designed Clothing
- 1 Year Manufacturer’s Warranty
Accessories:
- Operating system:
- LLEAP PC or SimPad Plus®
- Simulated Patient Monitor & Software
- Scenarios are available on Laerdal Scenario Cloud
Service Packages*:
- One or 2 Day Introductory Training Course
- Advanced Scenario Programming Course
- Custom One Day Training Package
- Custom Scenario Development Package
- On Site Installation
- Extended Warranty
- Preventative Maintenance
- Loaner Program
* services available may differ between countries
